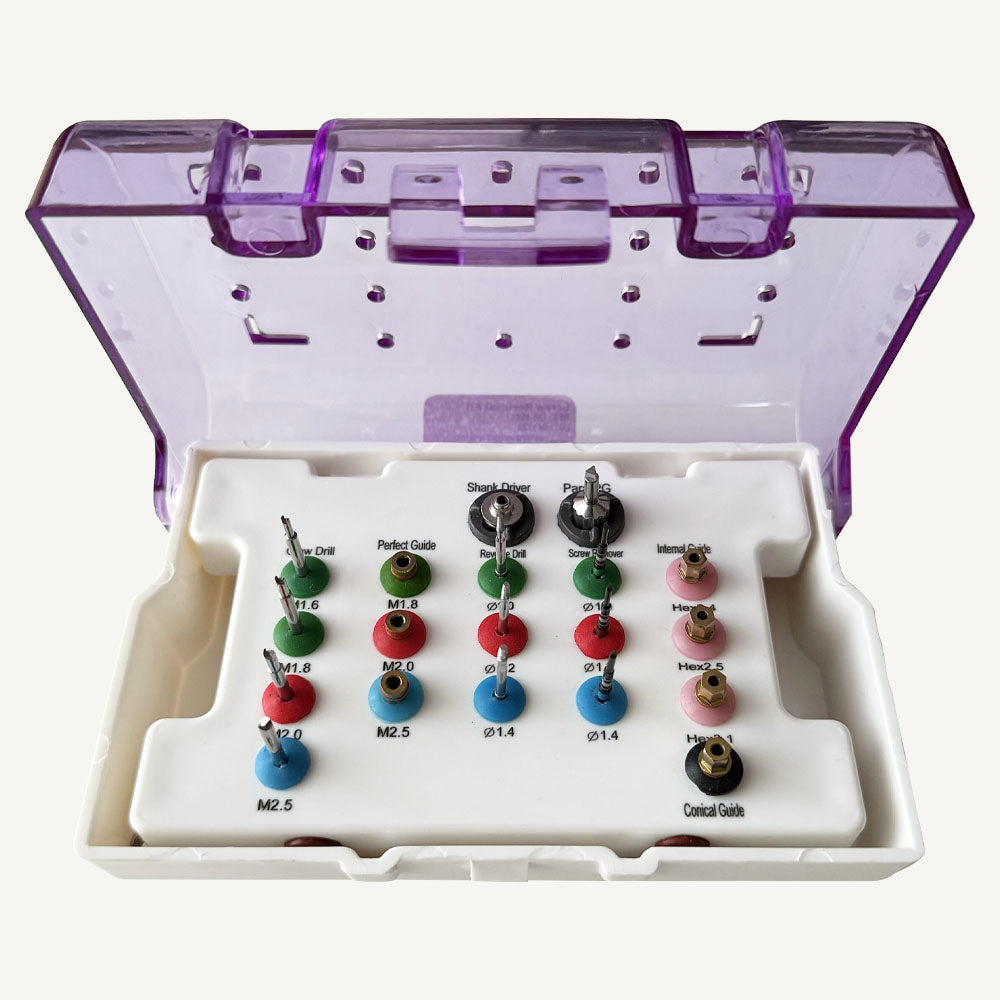

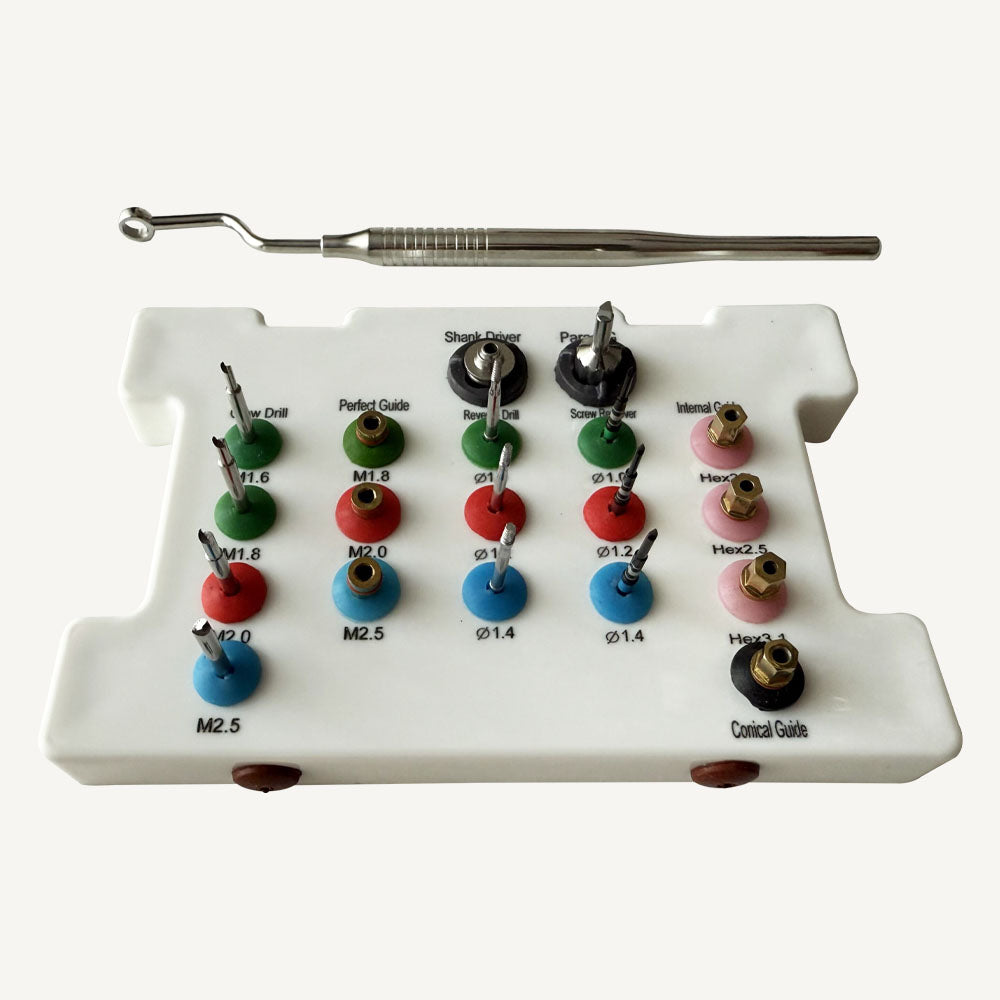

Dental Implant Screw Removal Kit provides the tools needed for safe and efficient removal of fractured screws from dental implants with minimal risk to the patient.

1- Claw Drill
This surgical tool is designed to remove screws that have fractured inside a fixture.
To use, select the appropriate size based on the screw to be removed. Attach the guide (Conical, Internal, or External) to the fixture, then connect it to the shank driver. The fractured screw can then be removed by manually rotating the tool in the reverse direction.
If the fractured screw cannot be extracted with the claw drill, use the reverse drill and screw remover for removal
2- Reverse Drill
This tool is designed to create a hole on the fractured surface of a screw, enabling removal with a screw remover.
Select the appropriate reverse drill size based on the screw to be removed, and connect it to a guide compatible with the fixture (Perfect, Conical, Internal, or External Guide). The drill depth can be adjusted from 1mm to 3mm, guided by the markings on the drill body.
3- Screw Remover
This device is designed to remove fractured screws.
To use, select a screw remover that matches the size of the hole created with the reverse drill. Insert the remover and rotate it in the reverse direction at a low speed (80 rpm or less).
The screw remover features a tapered design that increases friction as it rotates, providing the necessary grip to loosen and extract the screw effectively.
4- Shank Driver
This surgical tool is designed to connect to the screw remover, enabling use with a hand tool, torque wrench, or ratchet for effective operation.
5- Perfect Guide & PG Hand Driver
The Perfect Guide serves as a guide for the reverse drill and is used when a screw has fractured at the lower part of the female screw within the fixture. It connects to the PG hand driver and is directly applied to the female screw of the fixture.
Designed with safety in mind, the Perfect Guide features an internal stop mechanism that prevents the reverse drill from exceeding a depth of 2mm during use.
6- Conical, Internal, External Guide
These guides are used with the reverse drill when the Perfect Guide cannot be utilized or when the screw is fractured deeper than 2mm into the lower part of the female screw within the fixture.
It is essential to select the guide that is compatible with the specific fixture for effective use.
7- SR Driver Holder
This tool can be easily secured to the fixture by connecting it to the 3.5 double hex section of the Conical, Internal, or External Guide.

Features:

Made of medical-grade German stainless steel.
Passivation procedure performed to prevent rust and improve corrosion resistance.
Non-sterile, reusable and autoclavable.
Form test, boiling test and performance test carried out.
Lifetime warranty against defects in materials and workmanship.
